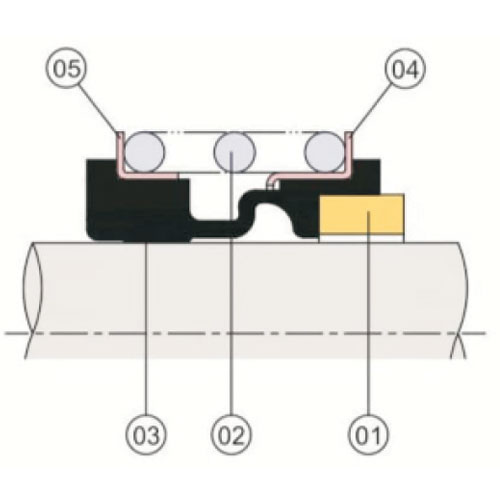

Applications :
• Submersible pump
• Sewage pump
• Water pumps
Seal Characteristics :
• Single acting
• Unbalanced
• Single helical coil spring
• Independent of direction of rotation
Operating Limit :
Temperature : -20……+180 °C
Pressure : 12 Bar (Max.)
Velocity : 20 m/sec
| Pos. No. | Description |
| 01 | Seal ring |
| 02 | Spring |
| 03 | Bellow |
| 04 | Front spring holder |
| 05 | Rear spring holder |

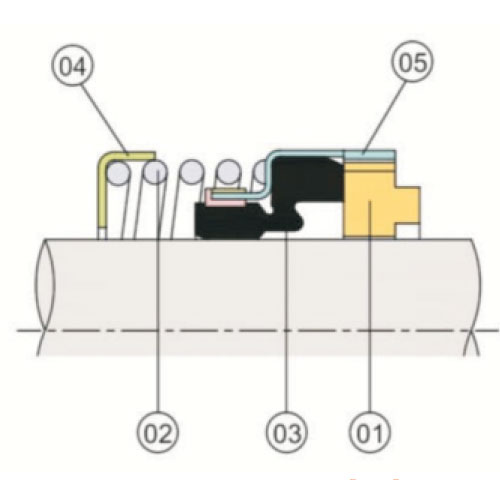

Water Pump Seal
Applications :
• Submersible pump
• Water pumps
Seal Characteristics :
• Single acting
• Unbalanced
• Single helical coil spring
• Independent of direction of rotation
Operating Limit :
Temperature : -20……+180 °C
Pressure : 12 Bar (Max.)
Velocity : 20 m/sec
| Pos. No. | Description |
| 01 | Seal ring |
| 02 | Spring |
| 03 | Bellow |
| 04 | spring holder |
| 05 | Retainer |
• Seal Face : SIC/Carbon/TC/Ceramic/Stellite

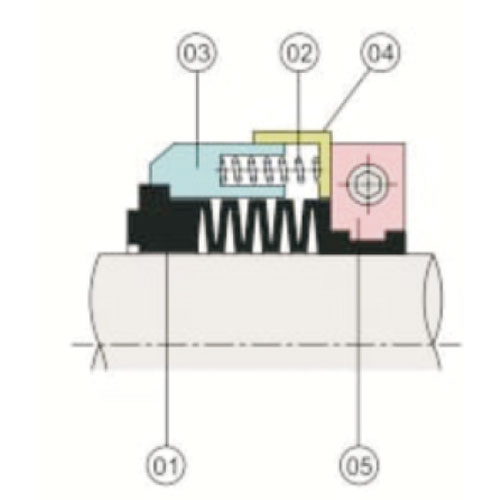

Teflon Bellow Seal
Applications :
• Extremely corrosive services
Seal Characteristics :
• Single acting
• Unbalanced
• Ourtside mounted
• Multiple spring
Operating Limit :
Temperature : -45……+120 °C
Pressure : 6 Bar (Max.)
Velocity : 20 m/sec
| Pos. No. | Description |
| 01 | Seal ring |
| 02 | Spring |
| 03 | Spring holder |
| 04 | Thrust ring |
| 05 | Clamp ring |
• Seal Face : GFT/CERAMIC/SIC

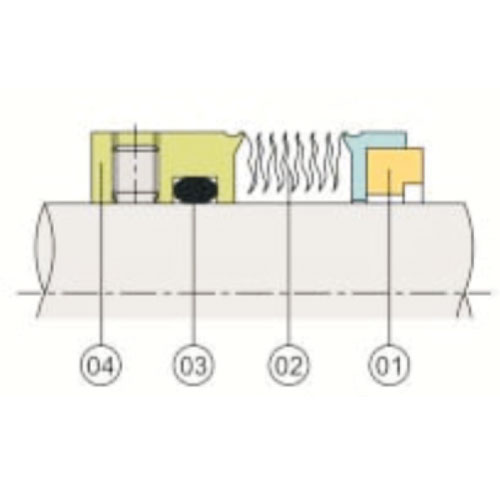

Metal Bellow Seal
Applications :
• Petrochemical
• Petroleum Refinery
• Refinery
Seal Characteristics :
• Single acting
• Inherently balanced
• Inside mounted
Operating Limit :
Temperature : -20……+350 °C
Pressure : 20 Bar (Max.)
Velocity : 20 m/sec
| Pos. No. | Description |
| 01 | Seal ring |
| 02 | Spring |
| 03 | O-Ring |
| 04 | Rear Collar |
• Seal Face : SIC/Carbon/TC/Stellite

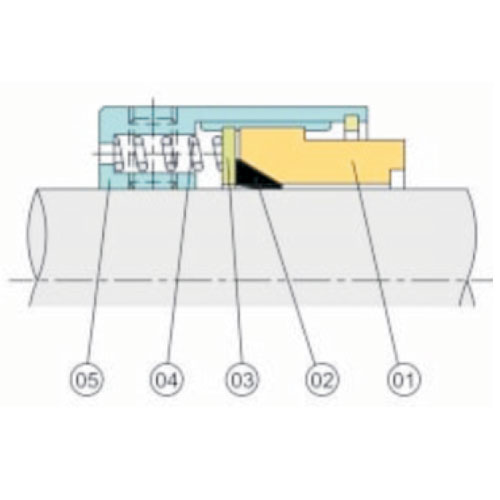

Multi Spring Seal
Applications :
• General Chemicals
• Petroleum Chemical
• Light Hydrocarbons
• Petroleum Refinery
Seal Characteristics :
• Single acting • Unbalanced / Balanced
• Inside mounted • Multi spring
• Independent of direction of rotation
Operating Limit :
Temperature : -60……+200 °C
Pressure : 10 / 35 Bar (Max.)
Velocity : 20 m/sec
| Pos. No. | Description |
| 01 | Seal ring |
| 02 | Wedge/Oring |
| 03 | Thrust Ring |
| 04 | Spring |
| 05 | Retainer |
• Seal Face : SIC/Carbon/TC/Ceramic/Stellite

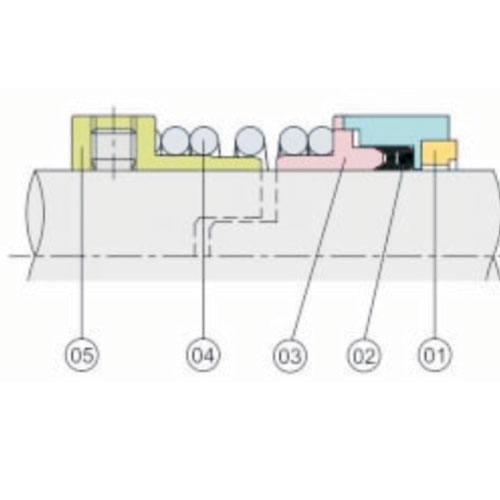

Single Spring Seal
Applications :
• Suspended solids slurry
• General Chemical slurry
• Crystallizing slurry
• Saturated chemical slurry
Seal Characteristics :
• Single acting
• Unbalanced
• Inside mounted
• Single helical coil spring
• Independent of direction of rotation
Operating Limit :
Temperature : -20……+200 °C
Pressure : 14 Bar (Max.)
Velocity : 20 m/sec
| Pos. No. | Description |
| 01 | Seal ring |
| 02 | V-packing |
| 03 | Spring holder |
| 04 | Spring |
| 05 | Drive collar |
• Seal Face : SIC/Carbon/TC/Stellite
Conical Spring Seal
Applications :
• Circulation pumps for central heating
• Sewage & submersible pumps
• Water Pumps
• Chemical process pumps
Seal Characteristics :
• Single acting
• Unbalanced
• Inside mounted
• Single helical coil spring
• Dependent of direction of rotation
Operating Limit :
Temperature : -20……+120 °C
Pressure : 10 Bar (Max.)
Velocity : 20 m/sec
| Pos. No. | Description |
| 01 | Seal ring |
| 02 | O-Ring |
| 03 | Spring |
• Seal Face : SIC/Carbon/TC/Stellite
Dura Type Seal
Applications :
• Easy to maintain
• Light weight
• Long lasting
Seal Characteristics :
• Single acting • Balanced
• Inside mounted
• Multi spring
• Independent of direction of rotation
Operating Limit :
Temperature : -25……+200 °C
Pressure : 25 Bar (Max.)
Velocity : 20 m/sec
| Pos. No. | Description |
| 01 | Seal ring |
| 02 | O-Ring |
| 03 | Spring holder |
| 04 | Spring |
| 05 | Drive Collar |
• Seal Face : SIC/Carbon/TC/Stellite

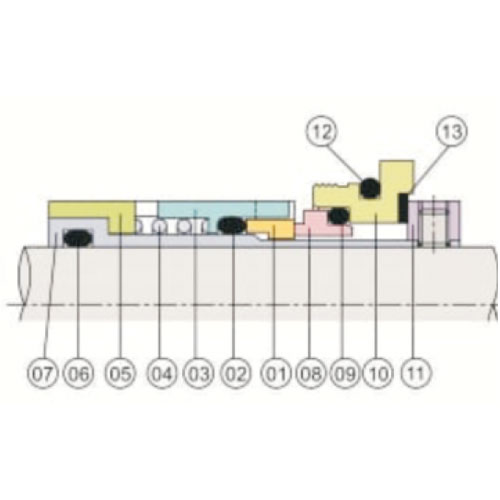

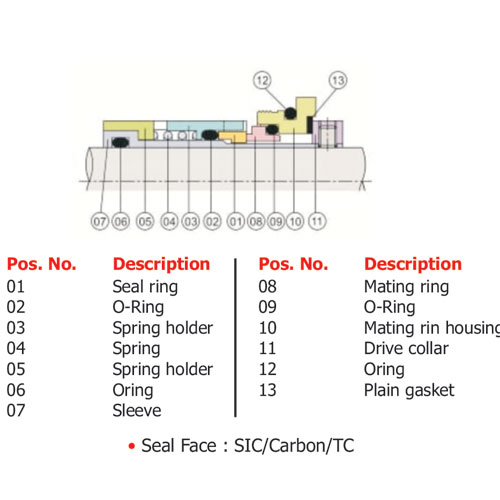

Vertical High Pressure Pump Seal
Applications :
• Slurry Pump • Pulp and paper
• Sludge & syrup pump
• Chemical, Petrochemical & Refinery
Seal Characteristics :
- Single acting • Unalanced • Inside mounted
- Single Helical coil spring
- Independent of direction of rotation
Operating Limit :
Temperature : -45……+200 °C
Pressure : 5 Bar (Max.)
Velocity : 20 m/sec
Applications :
• Sludge & syrup Pump.
• Slurry Pump
• Chemical
• Petrochemical, Refinery
• Pulp & Paper
• Chemical Process & ETP
• Pharma
Seal Characteristics :
• Balanced / Unbalance
• Single Acting/Double Acting
• Indipendent Direction
• Stationery Multiple Spring
• Seal Face : SIC/Carbon/TC
Operating Limit :
Shaft Diameter : 18mm to 100 mm
Pressure : 5 to 35 Bar (Max.)
Temperature : -20……+300 °C
Velocity : up to 4000 RPM
(Accroding to Shaft Size & Pressure.
